产品详情

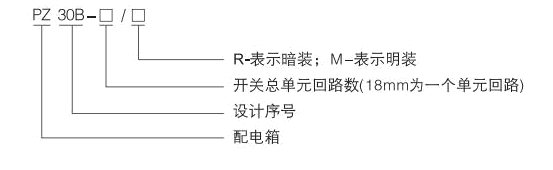

─产品概述─
─安装尺寸 ─
| 序号 | 暗箱 单位(mm) | 明箱 单位(mm) | ||||||
| 回路 | A | B | C | 回路 | A | B | C | |
| 1 | 4 | 150 | 125 | 78 | 4 | 180 | 155 | 78 |
| 2 | 6 | 180 | 180 | 90 | 6 | 210 | 210 | 90 |
| 3 | 8 | 180 | 215 | 90 | 8 | 210 | 245 | 90 |
| 4 | 10 | 180 | 250 | 90 | 10 | 210 | 280 | 90 |
| 5 | 12 | 180 | 290 | 90 | 12 | 210 | 320 | 90 |
| 6 | 15 | 180 | 340 | 90 | 15 | 210 | 370 | 90 |
| 7 | 18 | 180 | 400 | 90 | 18 | 210 | 430 | 90 |
| 8 | 20 | 360 | 250 | 90 | 20 | 390 | 280 | 90 |
| 9 | 24 | 360 | 290 | 90 | 24 | 390 | 320 | 90 |
| 10 | 30 | 360 | 340 | 90 | 30 | 390 | 370 | 90 |
| 11 | 36 | 360 | 400 | 90 | 36 | 390 | 430 | 90 |
| 12 | 40 | 360 | 480 | 90 | 40 | 390 | 510 | 90 |
| 13 | 45 | 540 | 340 | 90 | 45 | 570 | 370 | 90 |
| 14 | 50 | 360 | 570 | 90 | 50 | 390 | 600 | 90 |
| 15 | 60 | 360 | 660 | 90 | 60 | 390 | 690 | 90 |
